Bau-Man High Capacity Pumps
When you need to move a lot of water BAU-MAN has the right size model to get the job done quickly and efficiently.

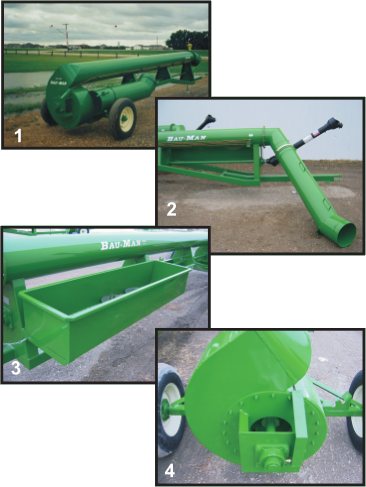

Features

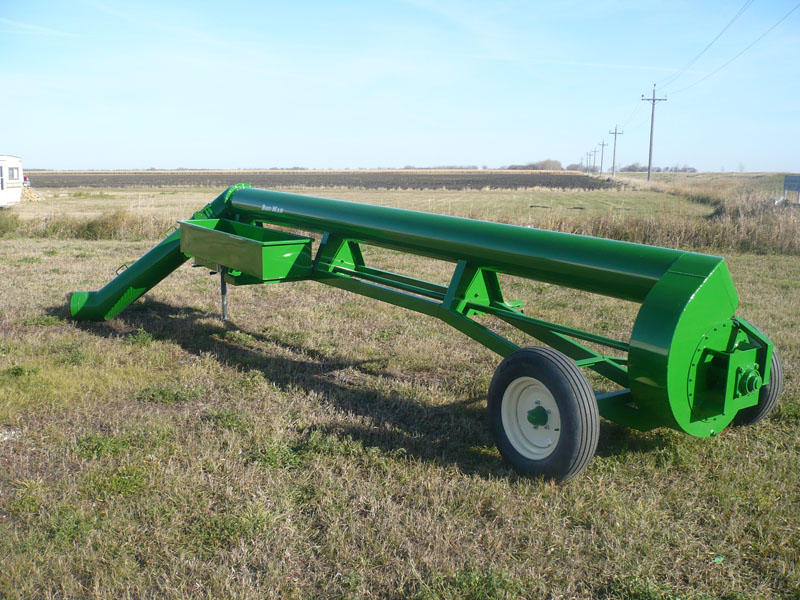

- Trailer mounted pump allows for quick and easy movement. (1)
- Available sizes range from 6" - 16" in diameter. (See matrix below for details)
- Stainless steel quick coupler hose clamps. (2 included)
- Bearings can be greased from a centralized point ar front of pump.
- Ample storage compartment for hoses and clamps. (3)
- Ground level discharge spout. (2)
- High leve undercarriage for additional clearance on countoured banks.
- Specially designed impeller allows for high volume of water movement with less horsepower requirement.
- Open impeller design allows larger objects to pass through without stopping pump. (4)
Optional Equipment
- Lay flat canvas hose
- Stainless steel hose clamp
- 18" long hose coupler
Pump | 2406 | 2408 | 2412 | 2416 |
---|---|---|---|---|
Size | 6" | 8" | 12" | 16" |
Flow-GPM* | 1250 | 2500 | 5000 | 10000 |
TDH-Feet | 13' | 15' | 17' | 17' |
Weight/lbs | 1595 | 1725 | 1920 | 2260 |
Length | 21' | 21' | 21' | 21' |
Drive | PTO - 540 RPM | PTO - 540 RPM | PTO - 540 RPM | PTO - 540 RPM |
Recommended HP* | 40 | 55 | 70 | 100 |
Warranty | 1 year | 1 year | 1 year | 1 year |
* Estimated
