Crisafulli Trailer Pumps

Features

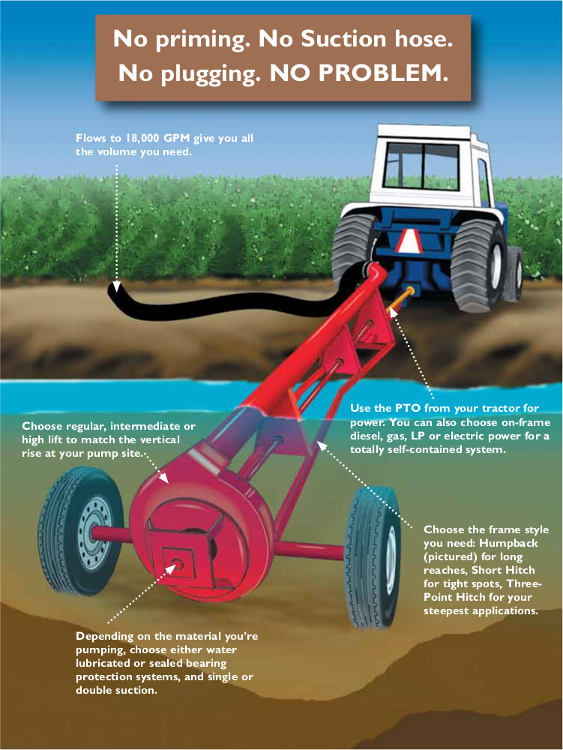

Rugged SRS Crisafulli trailer pumps can handle up to 18,000 gallons per minute (68,000 liters per minute), and lifts of more than 50 feet (15 meters). Their super portability means you can transport them easily.

• Steel construction — Our trailer pumps are built of 1/4" (standard) or 3/8" (industrial) mild carbon steel for durability and strength.
• Single axle trailers with heavy duty driveshafts — move your trailer pump from site to site easily and safely.
• Sealed bearings or waterlube bearings — SRS Crisafulli trailer pumps are custom-designed to match the kind of material you pump.
• Discharge sizes of 2" to 24" — we offer a full range of options to match your volume needs.
• 540 and 1000 RPM available.
• Leading technology — After 40 years, customers still say, "SRS Crisafulli is the best."
• Completely customizable — choose special materials of construction, power source, bearings and suction. Call us — together we'll select a pump that's just what you need.

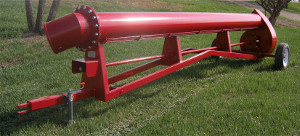

Humpback™ Trailer Pumps — For the longest reach, choose a humpback. (21' standard, but for even more length, ask about 10' and 20' trailer extensions.) The discharge and lube lines are at the front of the pump, so you can connect the discharge hose and grease the bearings without getting your feet wet. High volume performance goes without saying.

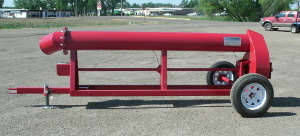

Short Hitch Trailer Pumps — Our short hitch pumps are designed for approaches that are both level and deep enough to submerge the pump case in a short distance. At just 15' overall, this pump style is perfect for those tight spots.

Crisafulli™ Standard Industrial Duty Short Hitch Trailer Pumps volute and impeller are manufactured from 3/8" A36 mild carbon steel. The volute and impeller are mounted on a 15' long, single axle trailer with a heavy duty driveshaft supported by four sealed, anti-friction ball bearings (five on double suction pumps), with remote grease lines extended to the front of the pump, telescopic PTO shaft, pin-type hitch, trailer jack and an 11' long discharge pipe with an oval band to adapt to CrisafulliTM discharge tubing. The pumps are available with 3/8" thick industrial duty pump volute and impeller parts. Standard Duty models are powered by tractors whose PTO shafts turn at 540 RPM.

Crisafulli Standard Industrial Duty Humpback™ Trailer Pumps volute and impeller are manufactured from 3/8" A36 mild carbon steel. The volute and impeller are mounted on a 21' long, single axle humpback trailer with a heavy duty driveshaft supported by four sealed, anti-friction ball bearings (five on double suction pumps), with remote grease lines extended to the front of the pump, telescopic PTO shaft,pin-type hitch, trailer jack and an 18' long discharge pipe with an oval band to adapt to CrisafulliTM discharge tubing.
